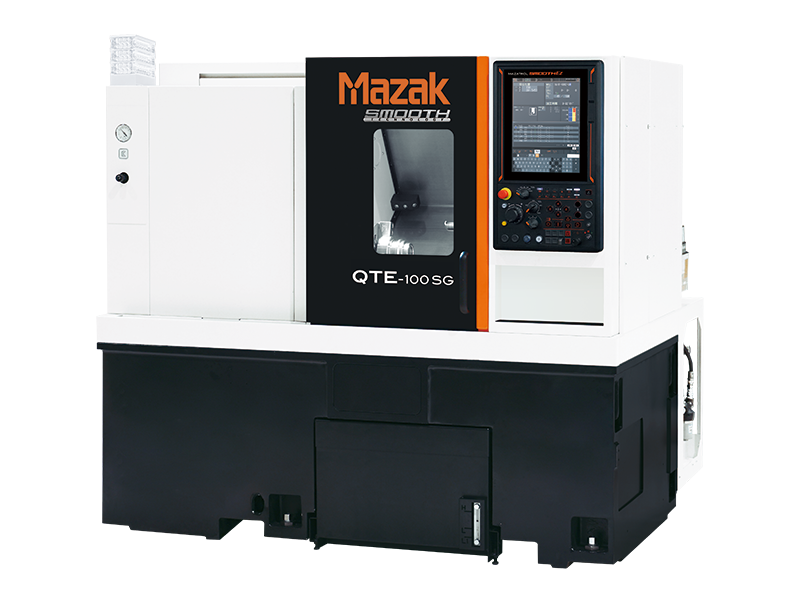

| Specification | Bed Length – 500U mm | |
|---|---|---|
| Capacity | Maximum Swing | 695 mm |
| Maximum Machining Diameter | 340 mm | |
| Maximum Bar Work Capacity | 52 mm | |
| Main Spindle | Chuck Size | 6 in |
| Maximum Speed | 6000 rpm | |
| Second Spindle | Chuck Size | 5 in |
| Maximum Speed | 6000 rpm | |
| Turret (Upper) | Number of Tools | 12 |
| Maximum Speed | 4500 rpm | |
| Feed Axes | Travel (X Axis) | 215 mm |
| Travel (Y Axis) | 100 mm | |
| Travel (Z Axis) | 605 mm | |
